드론 장비를위한 높은 C-rating 배터리 BZ 601419-15C 70mAh 3.7V 리튬 폴리머 배터리

$2.00

In stock

SKU

BZ 601419-15C

FOB 가격 : US $ 1.2-1.5 / 암페어
최소 주문 수량 : 1000 Ampere
주문 문의하시기 바랍니다!

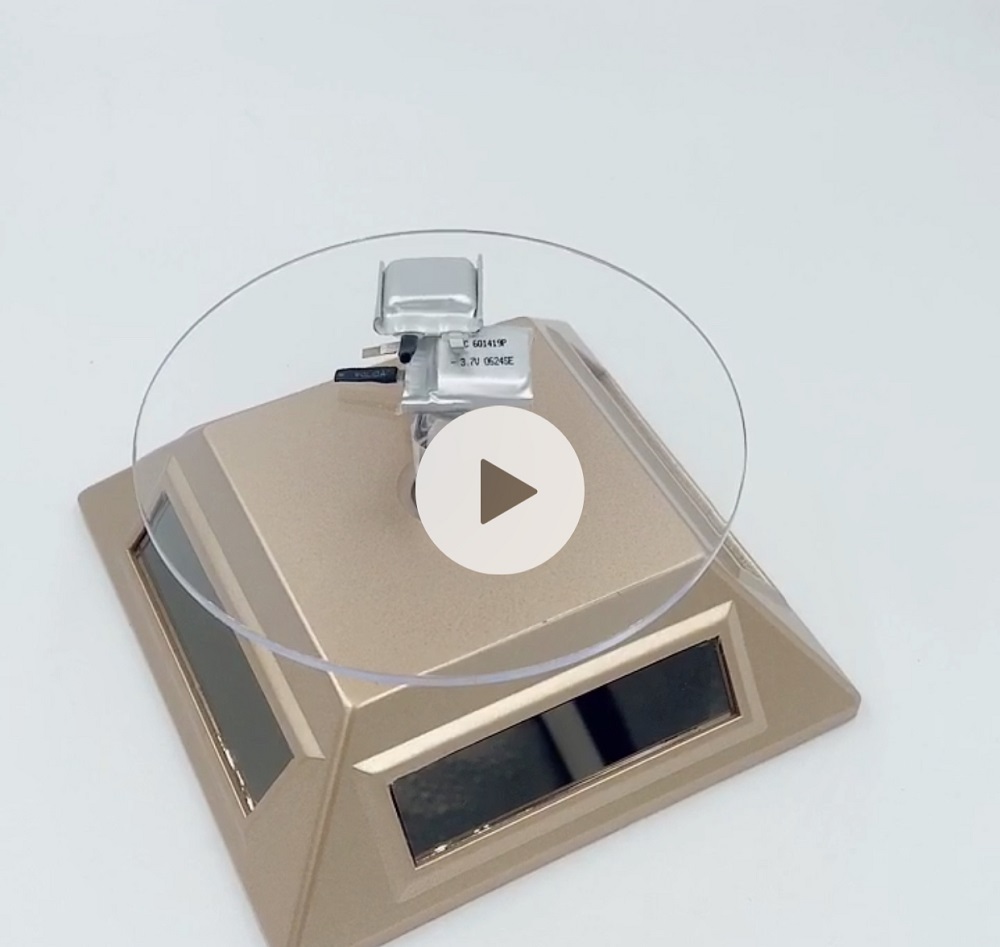

드론 장치를위한 높은 C-rating 배터리 BZ 601419-15C 70mAh 3.7V Lipo 배터리

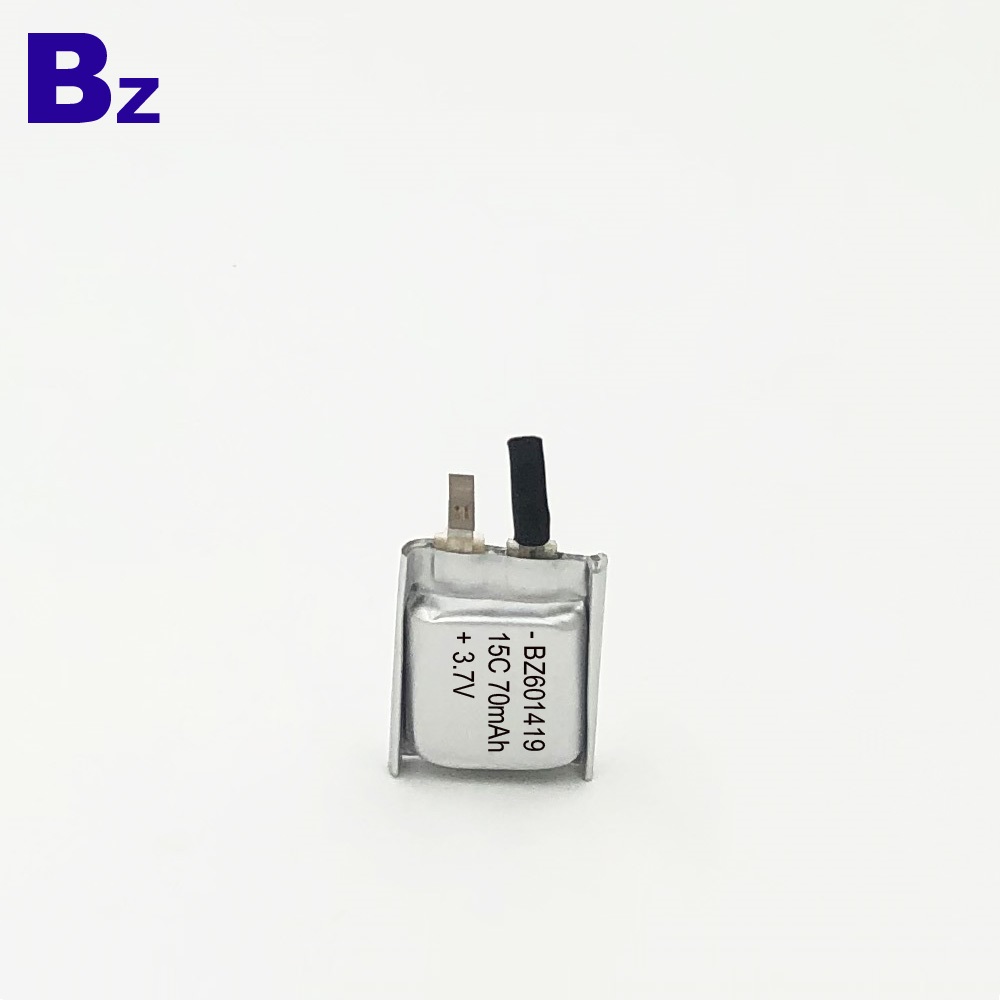

601419-15C 70mAh 3.7V 리튬 폴리머 배터리

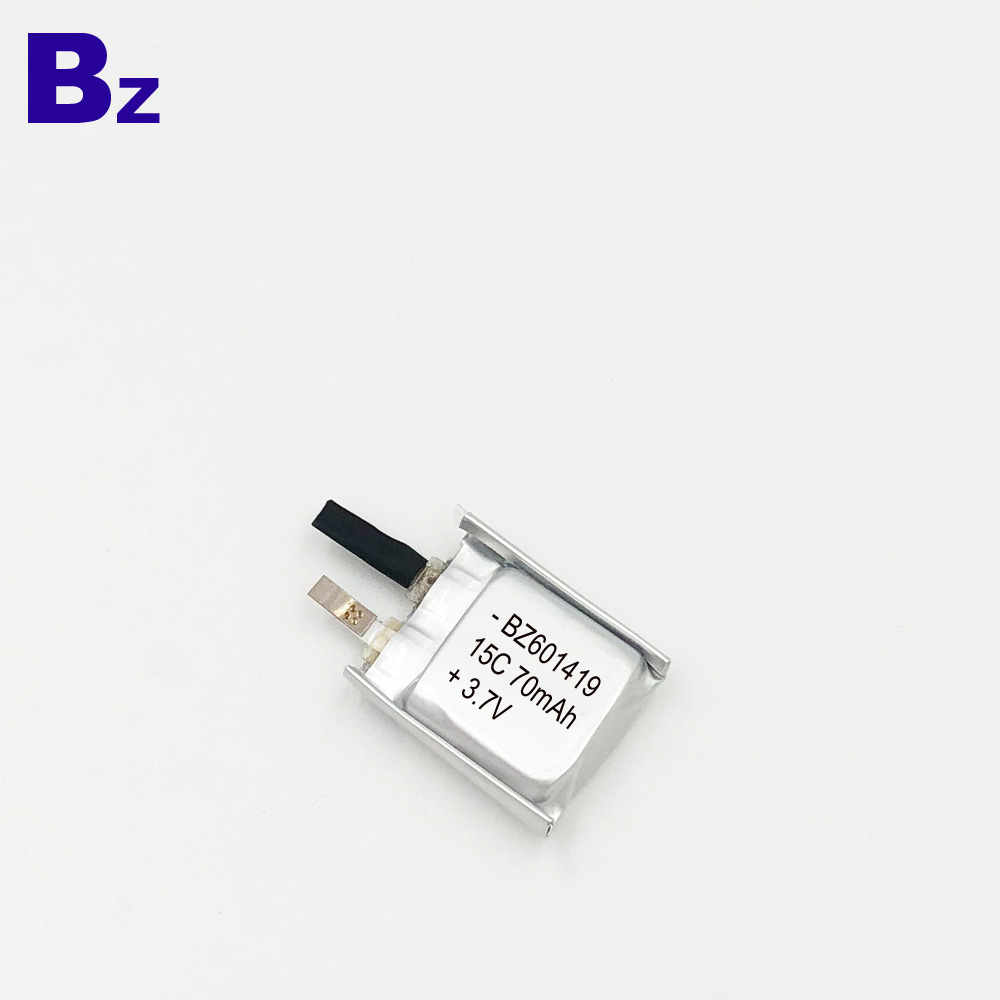

601419-15C 70mAh 3.7V 배터리

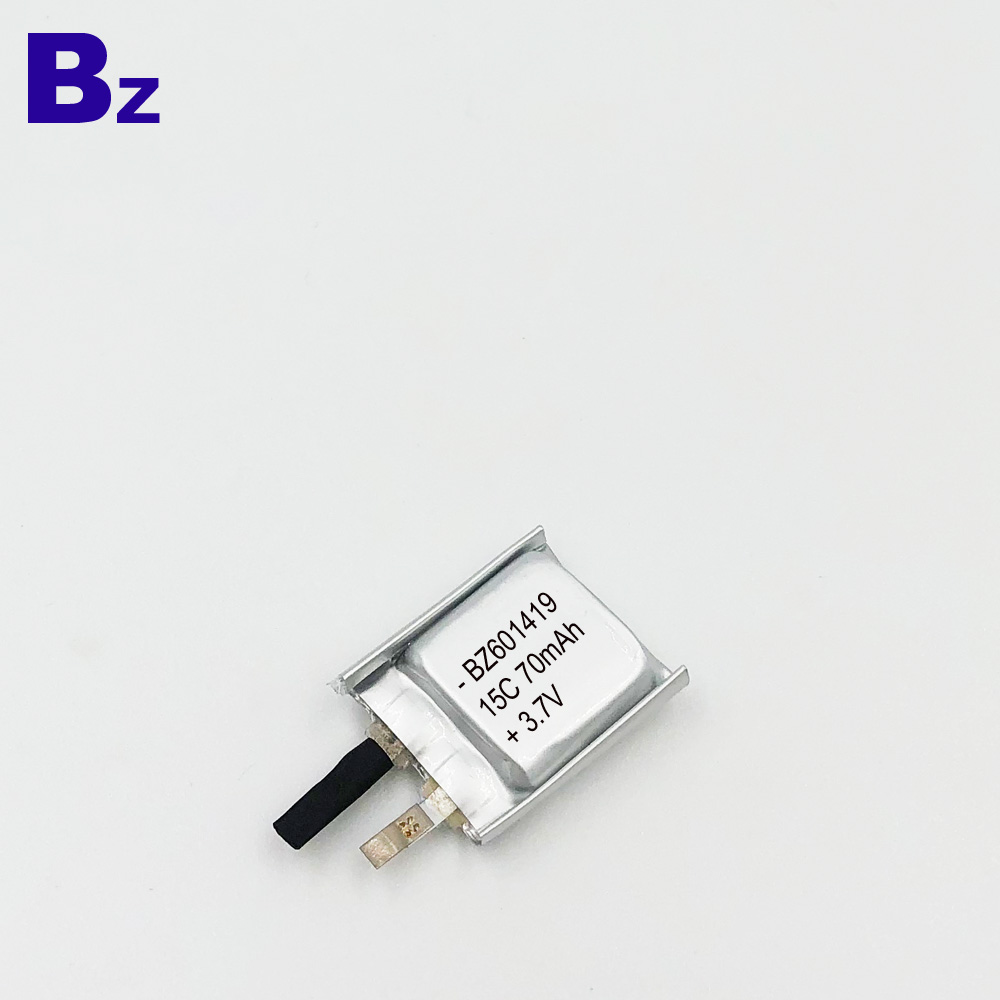

15C 70mAh 3.7V 리튬 폴리머 배터리

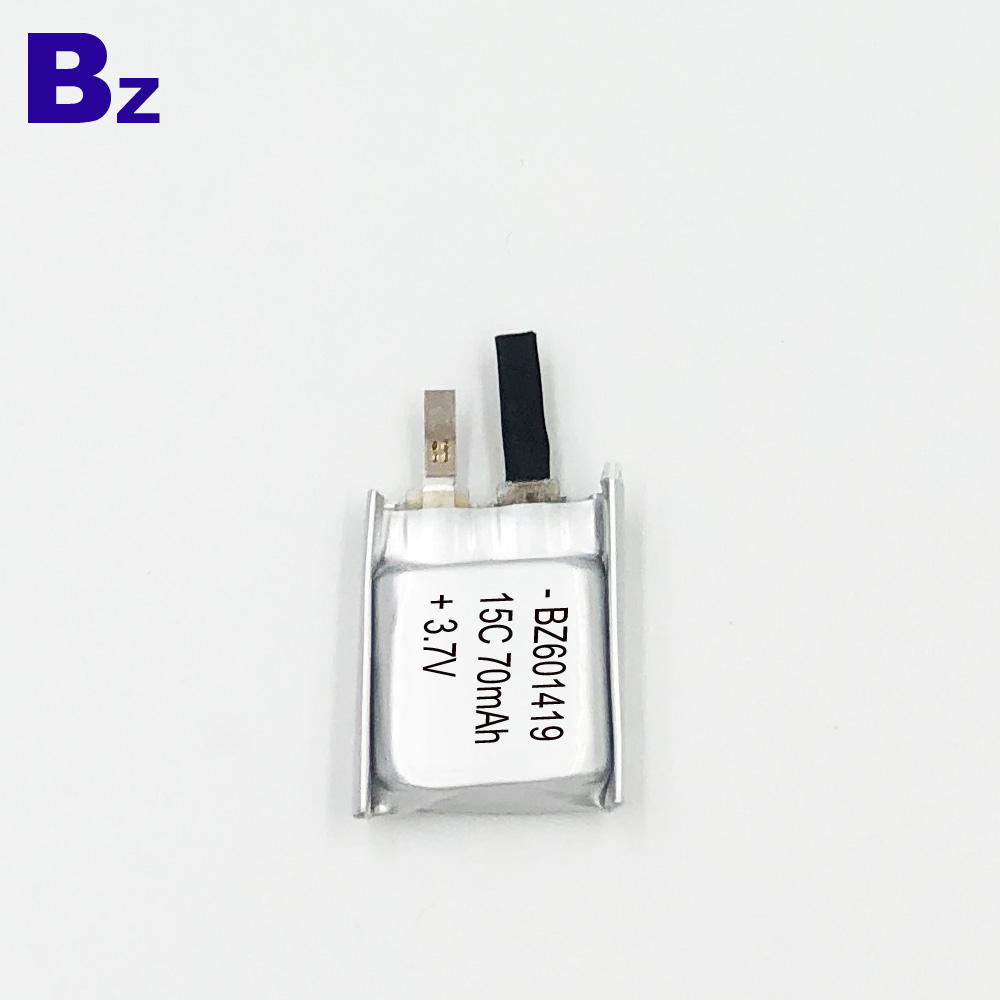

무인 비행기를위한 15C 70mAh 건전지

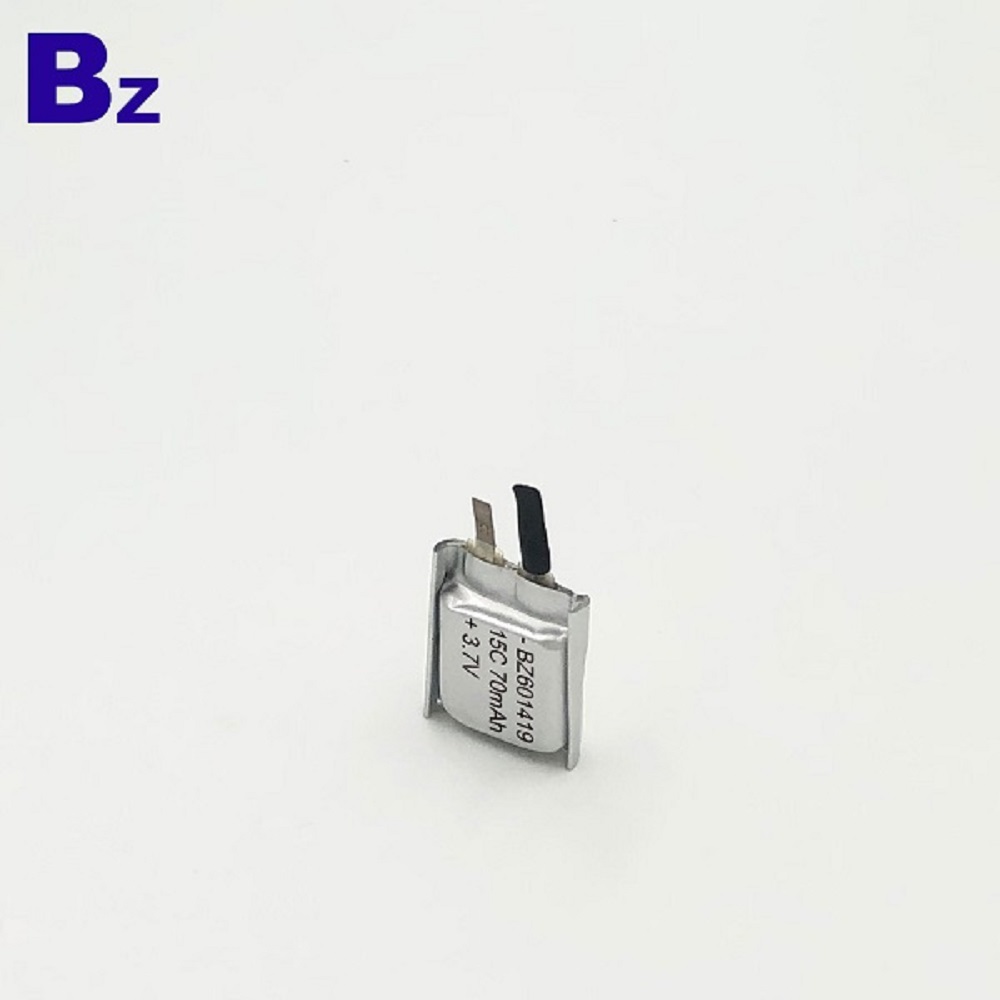

601419-15C 70mAh 고 C-rating 배터리

Product Parameters

No.	Item	General Parameter		Remark
1	Rated Capacity	Typical	75mAh	Standard discharge(0.2C C₅A) after Standard charge
		Minimum	70mAh
2	Nominal Voltage	3.7V		Mean Operation Voltage
3	Voltage at end of	3.0V		Discharge Cut-off Voltage
	Discharge
4	Charging Voltage	4.2±0.03V
5	Internal Impedance	≤495mΩ		Internal resistance measured at AC 1KH_Zafter 50% charge
				The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times
6	Standard charge	Constant Current 0.2C₅A		Charge time : Approx 6h
		Constant Voltage 4.2V
		0.01 C₅A cut-off
7	Standard discharge	Constant current 0.2 C₅A
		end voltage 3.0V
8	Fast charge	Constant Current 0.5C₅A		Charge time : Approx 2.5h
		Constant Voltage 4.2V
		0.01 C₅A cut-off
9	Fast discharge	Constant current 0.5C₅A
		end voltage 3.0V
10	Maximum Continuous Charge Current	1 C₅A
11	Maximum Continuous Discharge Current	1C₅A
12	Operation Temperature Range	Charge: 0~45℃		60±25%R.H.
				Bare Cell
		Discharge: -20~60℃
13	Storage Temperature Range	Less than 1 year: -20~25℃		60±25%R.H.
		less than 3 months: -20~40℃		at the shipment state
14	Pack Dimension	High: max20mm Width: max14mm Thickness: max6mm		Initial Dimension
