마이크 용 KC 인증 폴리머 리튬 이온 배터리 UFX 102050-2S 1000mAh 7.4V LiPo 배터리

$3.00

In stock

SKU

BZ 102050-2S 1000mAh 7.4V

가격 : US $ 1.2-1.5 / 암페어
Min. 주문 : 2,000 암페어
주문 하시려면 저희에게 문의하십시오!

Benzo Energy • UFine Technology 의 리튬 배터리 테스트 연구소

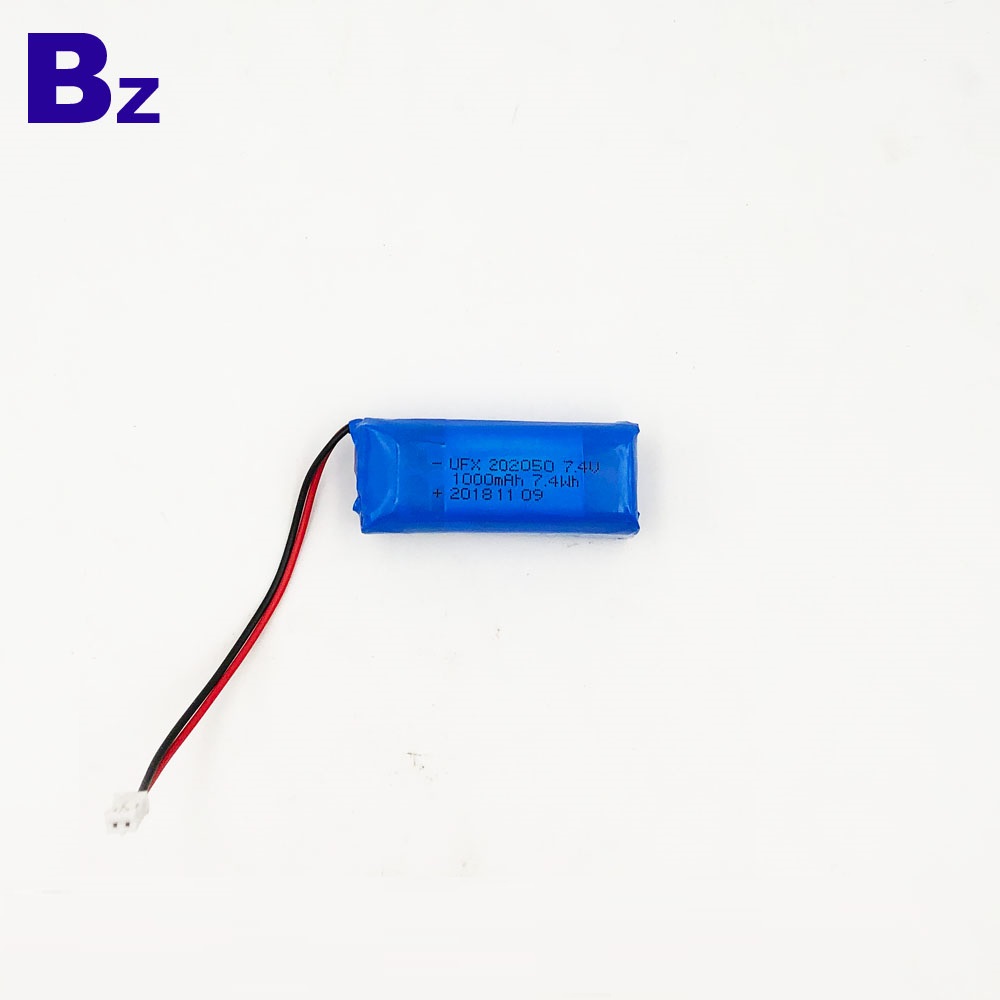

102050-2S 1000mAh 7.4V LiPo 배터리

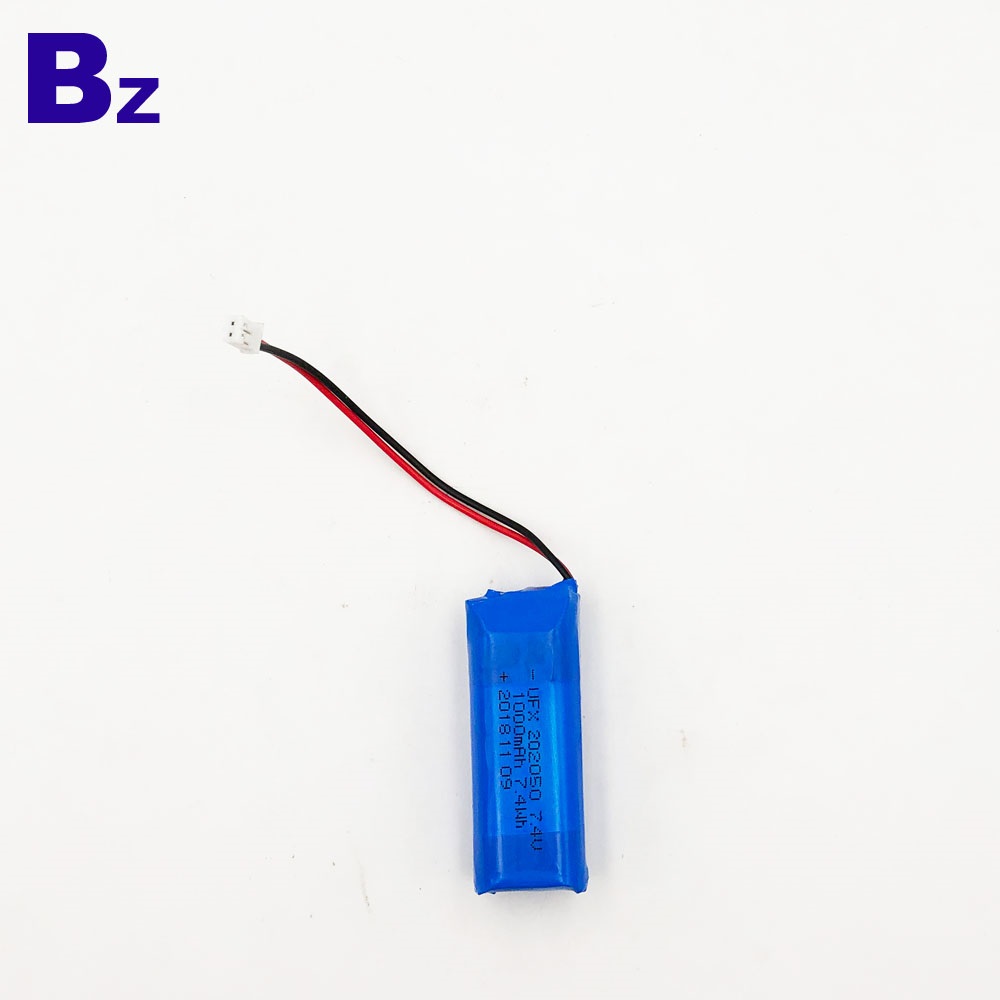

202050 1000mAh 7.4V LiPo 배터리

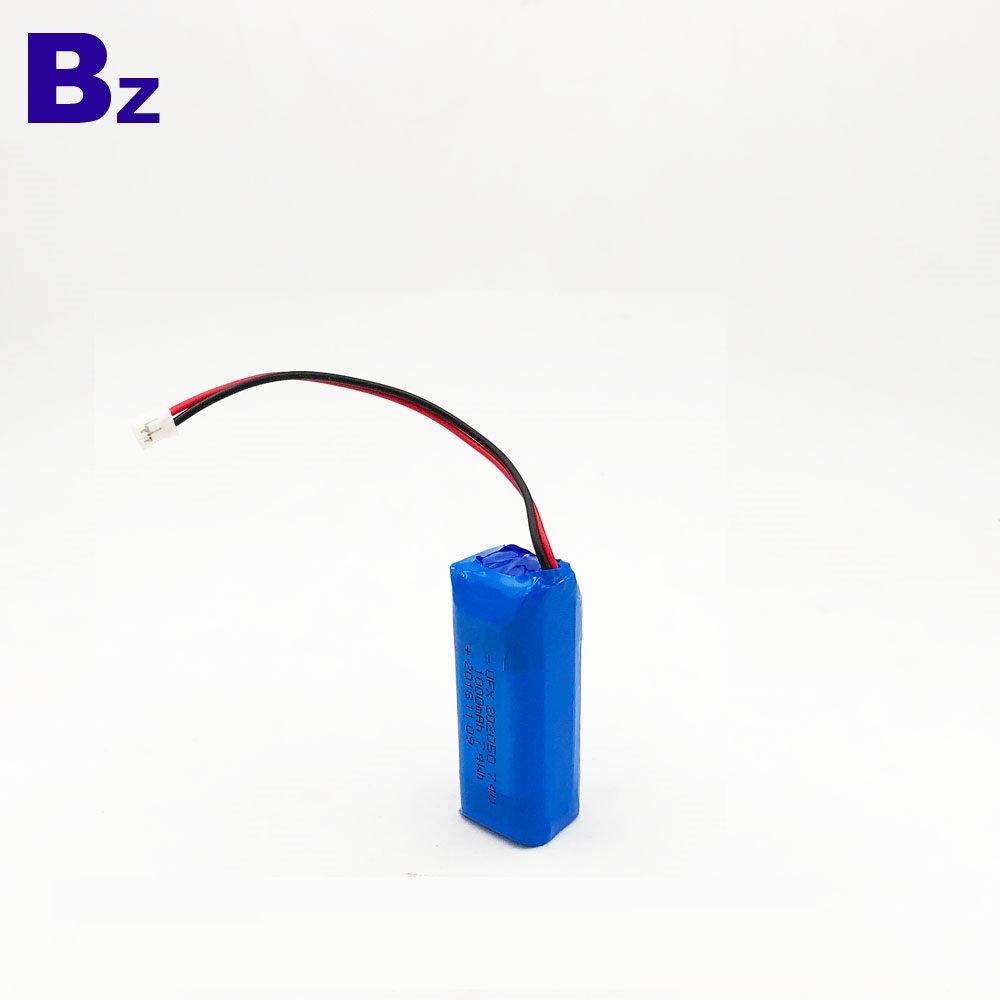

마이크 용 1000mAh 7.4V 폴리머 리튬 이온 배터리

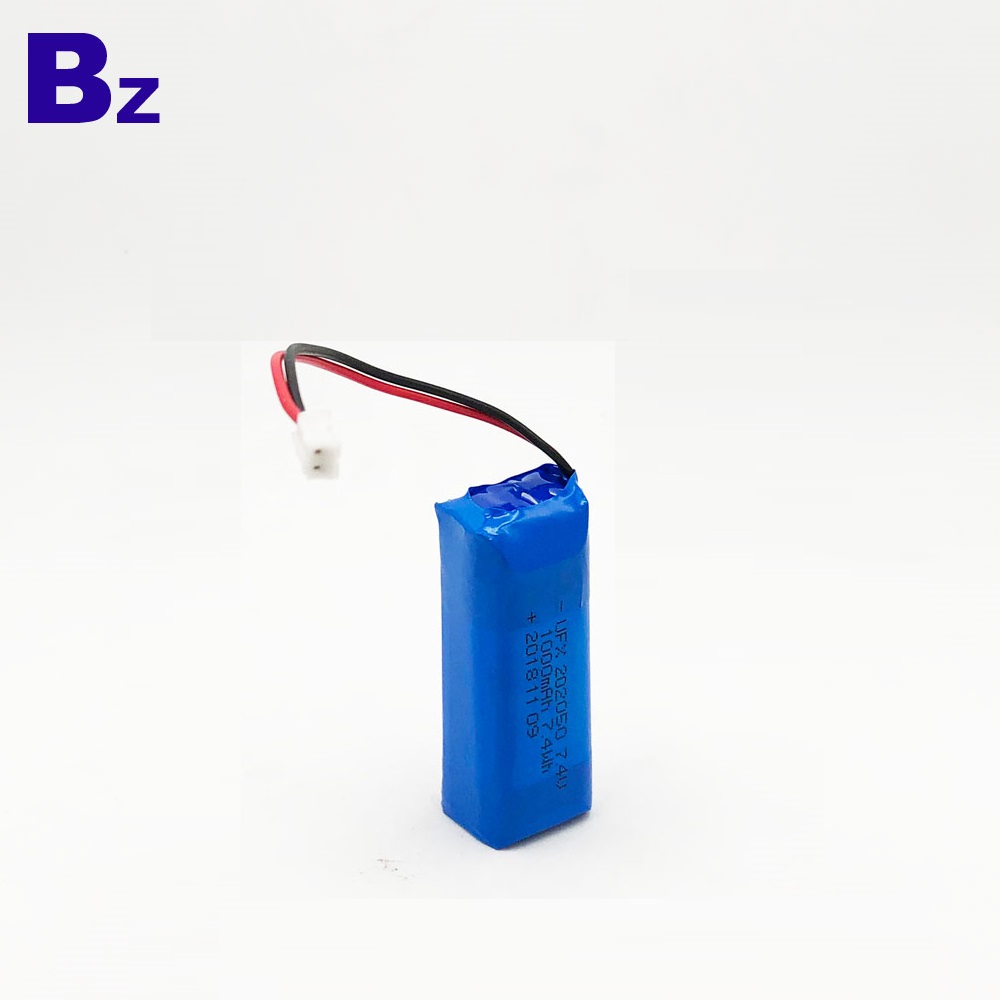

1000mAh 7.4V KC 인증 폴리머 리튬 이온 배터리

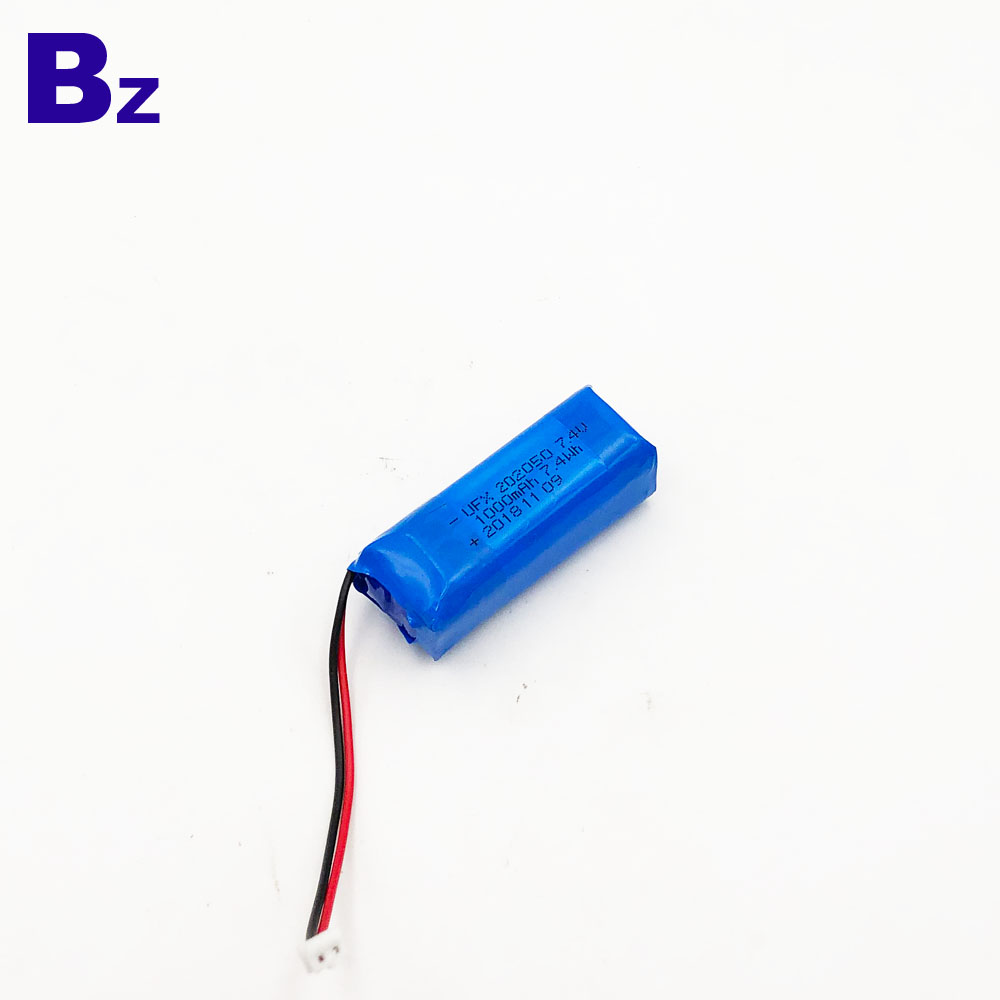

7.4V KC 인증 폴리머 리튬 이온 배터리

Product Parameters

No.	Item	General Parameter		Remark
1	Rated Capacity	Typical	1050mAh	Standard discharge(0.2C C₅A) after Standard charge
		Minimum	1000mAh
2	Nominal Voltage	7.4V		Mean Operation Voltage
3	Voltage at end of	6.0V		Discharge Cut-off Voltage
	Discharge
4	Charging Voltage	8.4±0.03V
5	Internal Impedance	≤100mΩ		Internal resistance measured at AC 1KH_Zafter 50% charge
				The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times
6	Standard charge	Constant Current 0.2C₅A		Charge time : Approx 6h
		Constant Voltage 8.4V
		0.01 C₅A cut-off
7	Standard discharge	Constant current 0.2 C₅A
		end voltage 6.0V
8	Fast charge	Constant Current 0.5C₅A		Charge time : Approx 2.5h
		Constant Voltage 8.4V
		0.01 C₅A cut-off
9	Fast discharge	Constant current 0.5C₅A
		end voltage 6.0V
10	Maximum Continuous Charge Current	1 C₅A
11	Maximum Continuous Discharge Current	1C₅A
12	Operation Temperature Range	Charge: 0~45℃		60±25%R.H.
				Bare Cell
		Discharge: -20~60℃
13	Storage Temperature Range	Less than 1 year: -20~25℃		60±25%R.H.
		less than 3 months: -20~40℃		at the shipment state
14	Pack Dimension	High: max52mm Width: max20mm Thickness: max20mm		Initial Dimension
