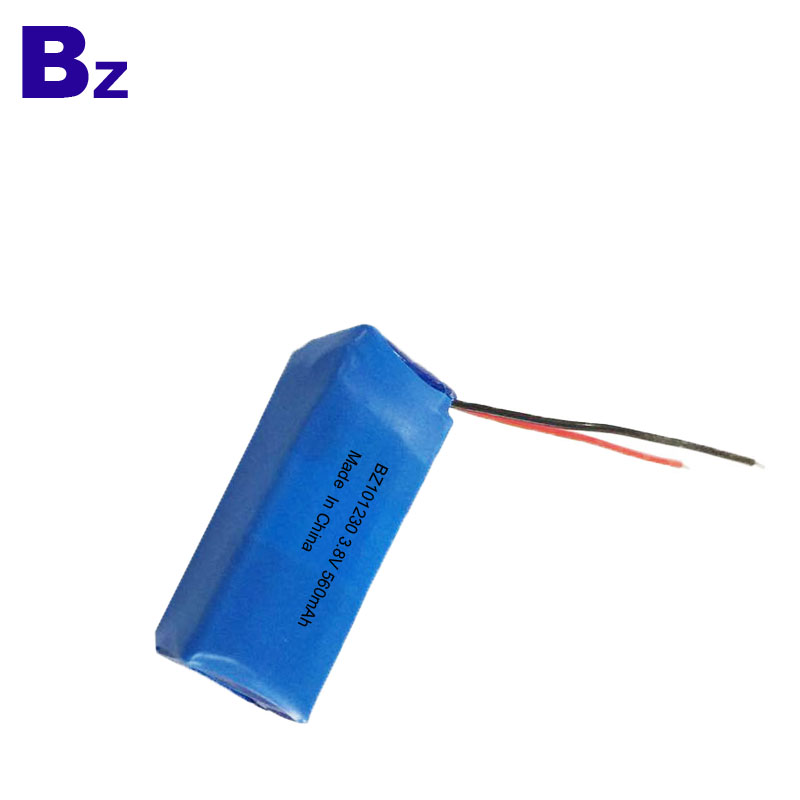

전동 칫솔을위한 중국 건전지 제조자 주문을 받아서 만들어진 재충전 전지 BZ 101230 3.7V 560mAh LiPo 배터리

$1.30
In stock
SKU
BZ 101230

가격 : US $ 1.2-1.5 / 암페어
Min. 주문 : 2,000 암페어
주문 하시려면 저희에게 문의하십시오!

     원산지 : 중국 광동
     유명 상표 : BZ
     모델 번호 : 101230
     유형 : 리튬 폴리머
     명목상 전압 : 3.7V
     크기 : 20 * 12 * 32mm
     공칭 용량 : 560mAh
     상품명 : 101230 리튬 이온 배터리
     보증 : 1 년
     무게 : 13g
     사이클 수명 : 500 회
     수용 인원 : 560mah
     전압 : 3.7V
     신청 : 전동 칫솔
     인증 : CE / RoHS / UN38.3 / MSDS
     지불 : Paypal.TT.Escrow.Western Union
     최대 충전 전류 : 1C

리튬 이온 배터리

101230 3.7V 560mAh LiPo 배터리

3.7V 560mAh LiPo 배터리

전동 칫솔 용 560mAh 배터리

맞춤형 충전식 배터리 3.7V 560mAh

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

580mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

560mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤80mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max32mm

Width: max12mm
Thickness: max20mm

Initial  Dimension
